Semester Design Project

Table of Contents

Client Pitch

Team: Big Red Stompers Clients: Cornell CALS Extension / E\&J Gallo Winery / National Grape

Problem Statement

Spotted lanternflies (SLF) mainly target grapevines. As a result, grape farmers are trying to manage SLF populations in vineyards and nearby trees. SLF egg masses contain around 30-60 eggs, creating rapid population growth that affects later growing seasons. Current SLF population reduction methods, such as netting and manual egg removal are difficult to scale across larger vineyards.

Impact

Elimination of SLF eggs prevents the development of adult populations causing the most damage to vineyards. The average SLFs per vine starts low, increasing sharply following the transition from nymph to adult stages (Figure 1). As a result, attacking the root cause would protect regions like Lake Erie and the Finger Lakes from losses between $1.5 million in year one and $8.8 million by year three of infestation (Hayes).

Proposed Concept: Stomp n’ Scrape

What it is: Handheld egg removal device.

How it would be used: Designed to crush SLF egg mass shells and immediately scrape them into a rubbing-alcohol-filled vessel to prevent hatching.

Why it’s better than the status quo:

  • Reduces the chance of leaving viable eggs behind.
  • Minimizes mess and user discomfort by sealing egg material instantly.
  • Improved output and efficiency compared to manual scraping alone.

End-of-semester proof-of-concept: A functional prototype with a crushing feature, integrated scraper, and removable alcohol container, fabricated using 3D-printed components and accessible materials, and tested on simulated SLF egg masses to evaluate effectiveness and ease of cleaning.

Key Risks / Unknowns

  • 1 - Egg masses harden, making it difficult to ensure they are fully damaged. Two methods to kill the egg masses: crushing them and then scraping them into rubbing alcohol to kill the remaining ones.
  • 2 — Public aversion to kill/interact with SLF, as crushing egg masses may be off-putting. Test with user trials and gauge user comfort.
  • 3 — Many eggs are laid on high surfaces; 98% of eggs are found at unreachable heights (+10 feet) on trees (Krawczyk). Test attachments to extendable tools for users to reach higher egg masses.

Questions for Client

  1. What is preventing you from currently targeting egg masses? Is it location, time or resources? Decision affected: This would affect the aspects we want to emphasize in our design, like making it accessible to higher areas of the tree and ease to clean, based on client demand.
  2. Are there methods for reaching high areas that you are currently using? Decision affected: This would affect whether our product must account for reaching high-up areas, or if it can be used with existing tools.
  3. How much would you need to reduce or eliminate SLF after they’ve already reached the grapevines? Decision affected: This would affect our focus from egg masses, potentially shifting our direction to solving the problem of SLFs in their adulthood phase.

References

  • New York State Integrated Pest Management. (n.d.). Spotted lanternfly management. https://cals.cornell.edu/integrated-pest-management/outreach-education/whats-bugging-you/spotted-lanternfly

  • Hayes, C. (2025, January 27). Spotted lanternflies could cost NYS grape industry millions. Cornell Chronicle. https://news.cornell.edu/stories/2025/01/spotted- lanternflies-could-cost-nys-grape-industry-millions#:~:text=Using%20data%20from%20two%20key,and%20third%20years %20of%20infestation%2C.

  • Krawczyk, G. (2023, August 30). What should you do with spotted lanternfly egg masses? PennState Extension. https://extension.psu.edu/what-should-you-do-with-spotted-lanternfly-egg-masses

Figure

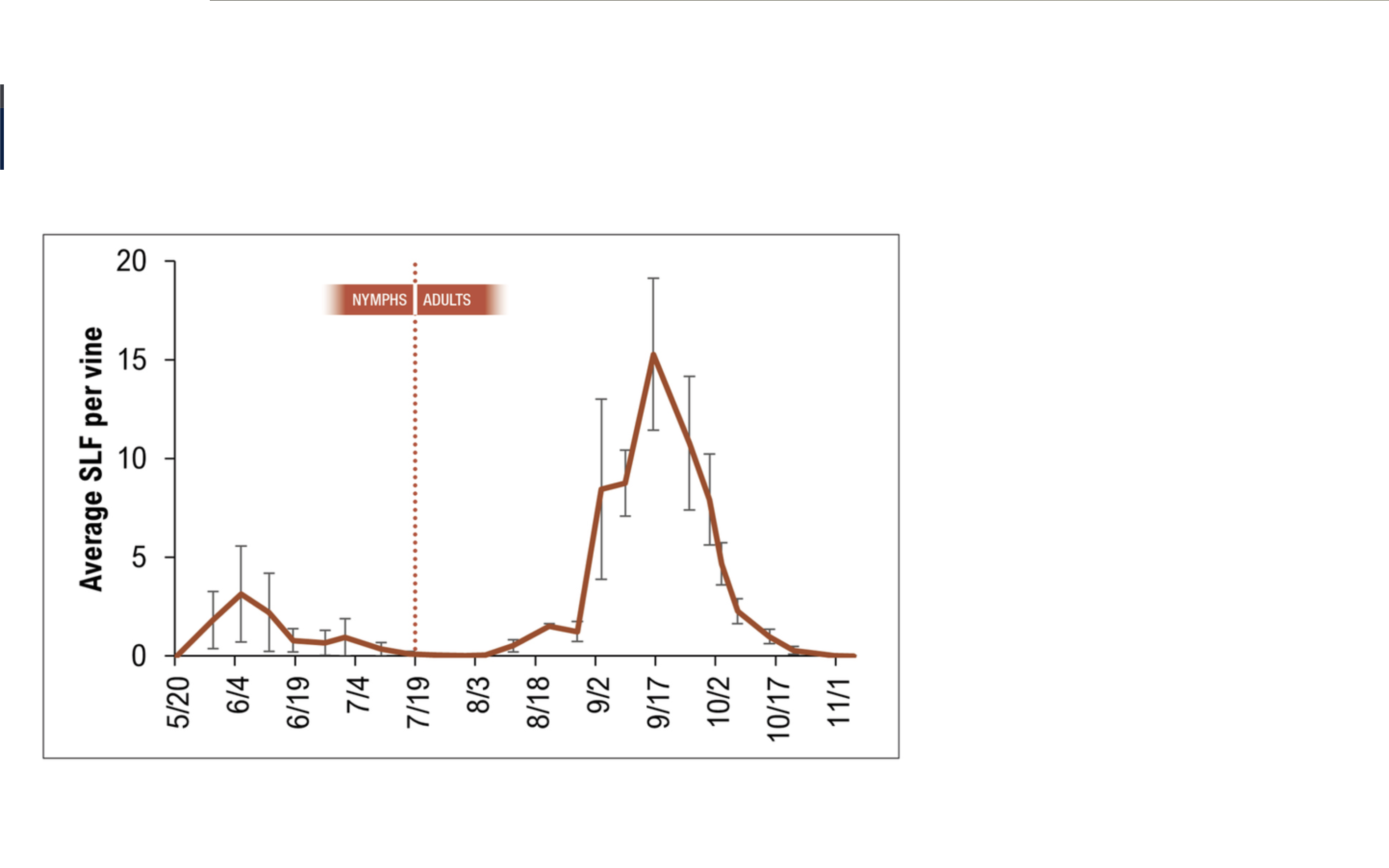

Average SLFs per Vine (2018-2020)

Functional Prototype

In This Section

Design Intent and Functionality

The prototype is intended to combine three main functions into one handheld device:

  • Scraping: the scraper removes the spotted lanternfly egg mass off the surface.
  • Crushing / Stomping: a spring-loaded internal stomper compresses the egg mass material to destroy the eggs.
  • Collection: the lower opening funnels egg residue into an attached bottle for containment and later neutralization.

Parts List and Fabrication Details

The functional prototype consists of the following parts:

Part Fabrication Description
Housing 3D printed at RPL Contains the sliding rail, supports the scraper assembly, and connects to the bottle interface
Stomper Face 3D printed at RPL Translates along the internal rail and compresses the egg mass during actuation
Compression Spring McMaster spring 8969T983 Additional spring testing performed with a workshop spring better matched to intended hand-actuated displacement
Knob / Actuation Interface 3D printed at RPL Used by the user to pull the internal mechanism and compress the spring
Scraper 3D printed at RPL Removes egg masses from the surface and guides debris toward the bottle attachment
Bottle Thread Connector 3D printed (lower housing) Interfaces with a standard plastic bottle for residue collection

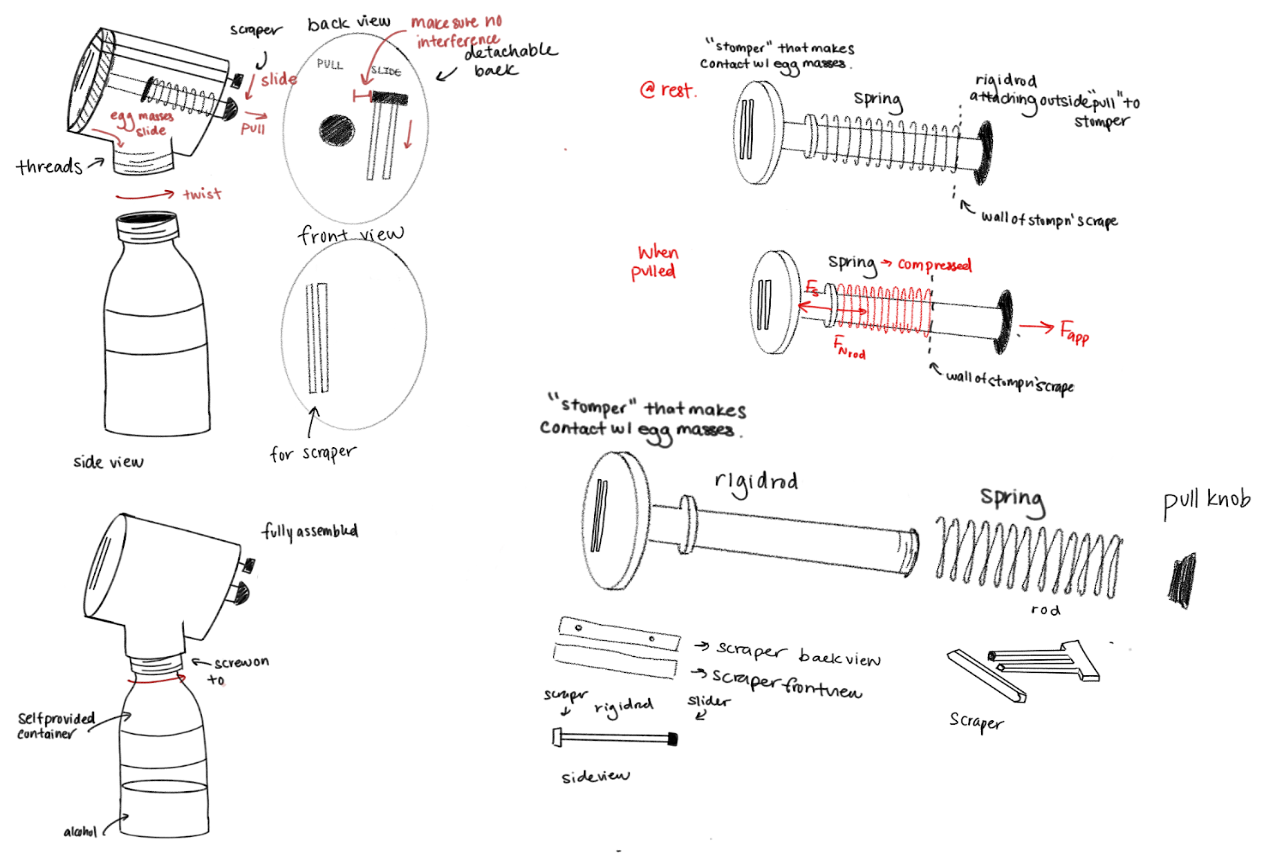

Components and Functions Illustration

Components and Functions Illustration

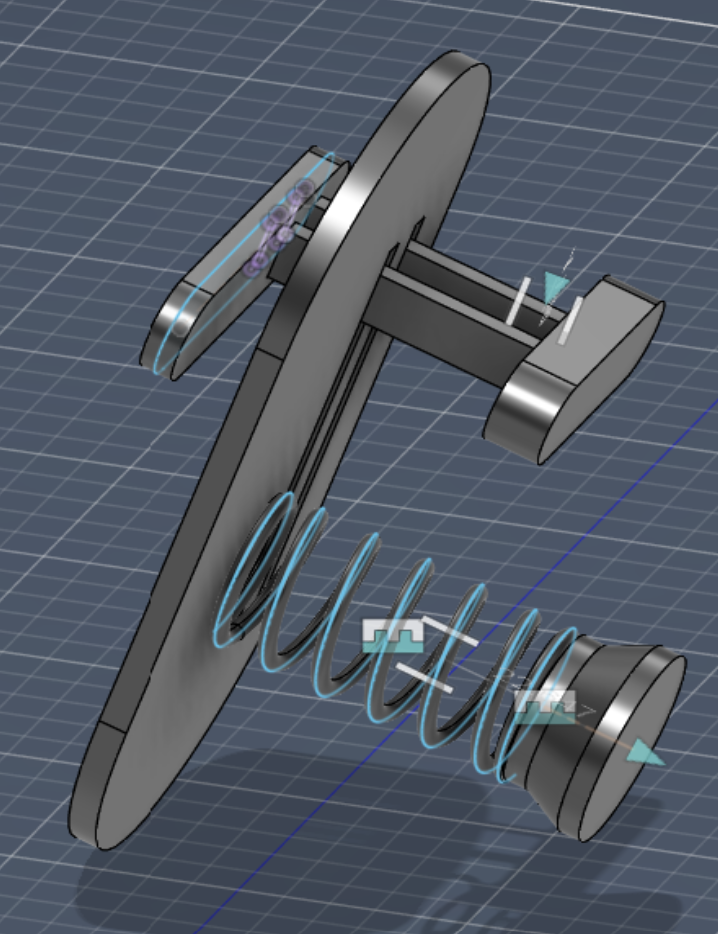

Scraper and Inside Assembly

Scraper and Inside Assembly

Assembly Process

  1. Prepare the spring-and-rod subassembly — Place the compression spring onto the rigid rod. The front circular plate and the rigid rod are designed as a single 3D-printed part, so the spring is seated directly onto this rod-and-plate subassembly.

  2. Prepare the shell casing — Take the printed shell / housing and inspect the rear opening to confirm that the spring-loaded subassembly can be inserted without interference.

  3. Insert the spring-loaded plate into the housing — Slide the plate-with-spring subassembly into the shell casing through the rear opening so that the spring and rod align with the internal axis of the housing.

  4. Attach the pull knob — Screw the pull knob onto the exposed end of the rigid rod at the back of the housing. This creates the user-actuated interface for compressing the spring.

  5. Install the scraper — Thread the scraper through the back opening of the housing and position it so that it aligns with the front opening where the egg mass will be contacted.

  6. Attach the scraper plate to the rigid rod — Secure the scraper plate to the rigid rod so that motion of the rod and spring mechanism drives the scraper/stomping action.

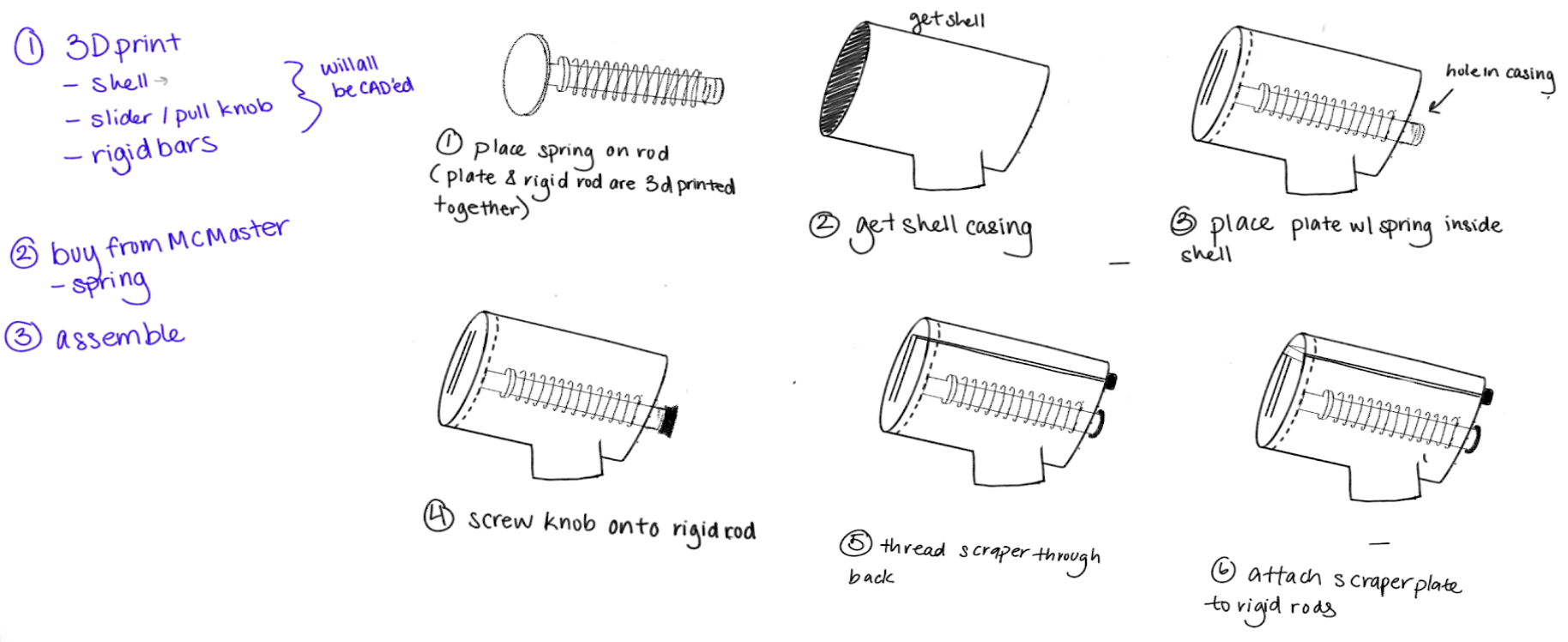

Assembly Illustration

Design Tests

Test 1: Sliding Rail Motion and Interference

Part being tested: Housing rail and slider/stomper interface.

What is being tested: Whether the slider can move through its intended range of motion without excessive friction, jamming, or interference. Because the product relies on repeated manual actuation, low-friction motion is critical for usability and repeatability.

How it was tested: The force required to initiate motion was measured using a spring-force ruler / spring scale attached to the slider. In addition, all 5 team members operated the slider and rated ease of use on a scale from 1 to 10, where 1 indicates very easy operation and 10 indicates very difficult operation.

Results: During assembly and initial actuation, the rail exhibited excessive friction due to insufficient CAD tolerance and printing inaccuracy. The force required to initiate motion was 10 N. The mean user difficulty score before modification was 7/10, indicating poor usability. After sanding the rail surfaces, the slider moved more smoothly and the mean user difficulty score improved to 5/10, but this remained outside the desired usability range of 1–4.

Conclusion / design changes for next prototype: The next prototype will increase clearance tolerances between the housing and slider by 5 mm and switch from PLA to PETG to reduce print irregularities and improve sliding performance. Additional testing over repeated cycles will be conducted to confirm that the rail does not bind over time.

Test 2: Spring Mechanism Force and Usability

Part being tested: Compression spring and stomping mechanism.

What is being tested: Whether the spring can be compressed by hand while still supplying enough force to help crush the egg mass. The design target from earlier work was a force in the approximate 50–70 N range, and the spring constant needed to be appropriate for the intended user displacement.

How it was tested: The team first evaluated the McMaster spring by manually compressing it through the intended actuation path and observing whether a user could reasonably generate sufficient displacement. The team then tested a workshop spring and estimated its spring constant using Hooke’s Law from an applied 500 g load and the resulting displacement of 1.5 in.

Results: The McMaster spring was too stiff for practical hand use and could only be compressed by several millimeters, which was far below the required displacement. A replacement spring from the workshop displaced 1.5 in under a 500 g force, corresponding to a spring constant of approximately 129 N/m or 0.74 lb/in. This value was close to the team’s rough estimated range, but later trials suggested that to more confidently generate sufficient crushing force with a displacement of about 2 in (~50 mm), the design would require a higher spring constant of approximately 3–3.5 lbf/in.

Conclusion / design changes for next prototype: The next prototype will use a spring with a slightly higher spring constant than the workshop spring while still remaining hand-operable. The team will also redesign the rod/attachment geometry to improve load transfer between the spring and stomper.

Success Criteria

Our project aims to create a portable product that provides a faster, cleaner, and more effective way to destroy spotted lanternfly egg masses than current scraping methods. For the final prototype, success will be evaluated using the following quantitative criteria.

Criterion 1: Portability

The device must weigh no more than 0.5 kg and have a length no greater than 20 cm without the bottle attachment and 30 cm with the bottle attachment. This criterion assesses portability and ease of handling. It will be measured using a digital scale and ruler. Smaller values are beneficial but are not the highest priority.

Criterion 2: Egg Destruction Effectiveness

The device must destroy at least 95% of the eggs in one egg mass in a single use. This criterion assesses the effectiveness of the crushing mechanism. It will be measured using a substitute egg mass such as peas and/or Orbeez, with the number of intact versus destroyed units counted before and after one actuation. A higher percentage is a high priority.

Criterion 3: Removal Speed

One egg mass must be completely removed and destroyed in less than 10 seconds on average. This criterion assesses efficiency in realistic use. It will be measured with a stopwatch across 10 repeated trials, using the average completion time. Faster completion is a very high priority.

Criterion 4: Residue Capture

The device must funnel at least 80% of the egg residue into the attached bottle. This criterion assesses cleanliness and collection performance. It will be measured by comparing the mass or count of collected residue in the bottle to the total removed residue. Increasing the capture percentage is a high priority.

Exhibit-Day Demonstration Criterion

Our exhibit-day demonstration will focus on two criteria that produce visible and measurable outcomes: complete egg-mass removal in under 10 seconds and at least 80% residue capture in the bottle. During the demo, the team will use a substitute egg mass on a test surface, time the removal process, and show that most of the residue is visibly directed into the bottle attachment.

Client Report

Context and Problem

Spotted lanternflies (SLF) pose a growing threat to vineyards. Each egg mass contains 30–60 eggs, driving exponential population growth and peak crop damage as nymphs develop into adults (Chamberlin). Left unchecked, infestations could cost regions like Lake Erie and the Finger Lakes around $1.5 million in year one and up to $8.8 million by year three (Hayes), making the egg stage the most effective intervention point. Current methods like netting are difficult to scale, the eggs harden over time and become harder to remove, and the public is often discouraged from removing them because of how off-putting the process is. These constraints are why we designed a more effective, user-friendly egg removal solution.

Final Prototype and Application

The Stomp n’ Scrape is a handheld device that targets SLF egg masses. A stomper crushes the eggs and a scraper sweeps them into a sealed bottle. The product is compact, portable, cost-efficient, and easy to manufacture — built so a wide public audience, not just grape farmers, can help address SLF populations.

To assemble the device, the housing threads onto a plastic water bottle. The spring sits on the stomper’s rod, which is threaded onto the knob. The scraper sits in the ring holder when the device is not in use. To crush eggs, the user pulls the knob back and releases it, repeating until the eggs are sufficiently crushed. The scraper is then inserted through the slits, allowing the user to clean the stomper face.

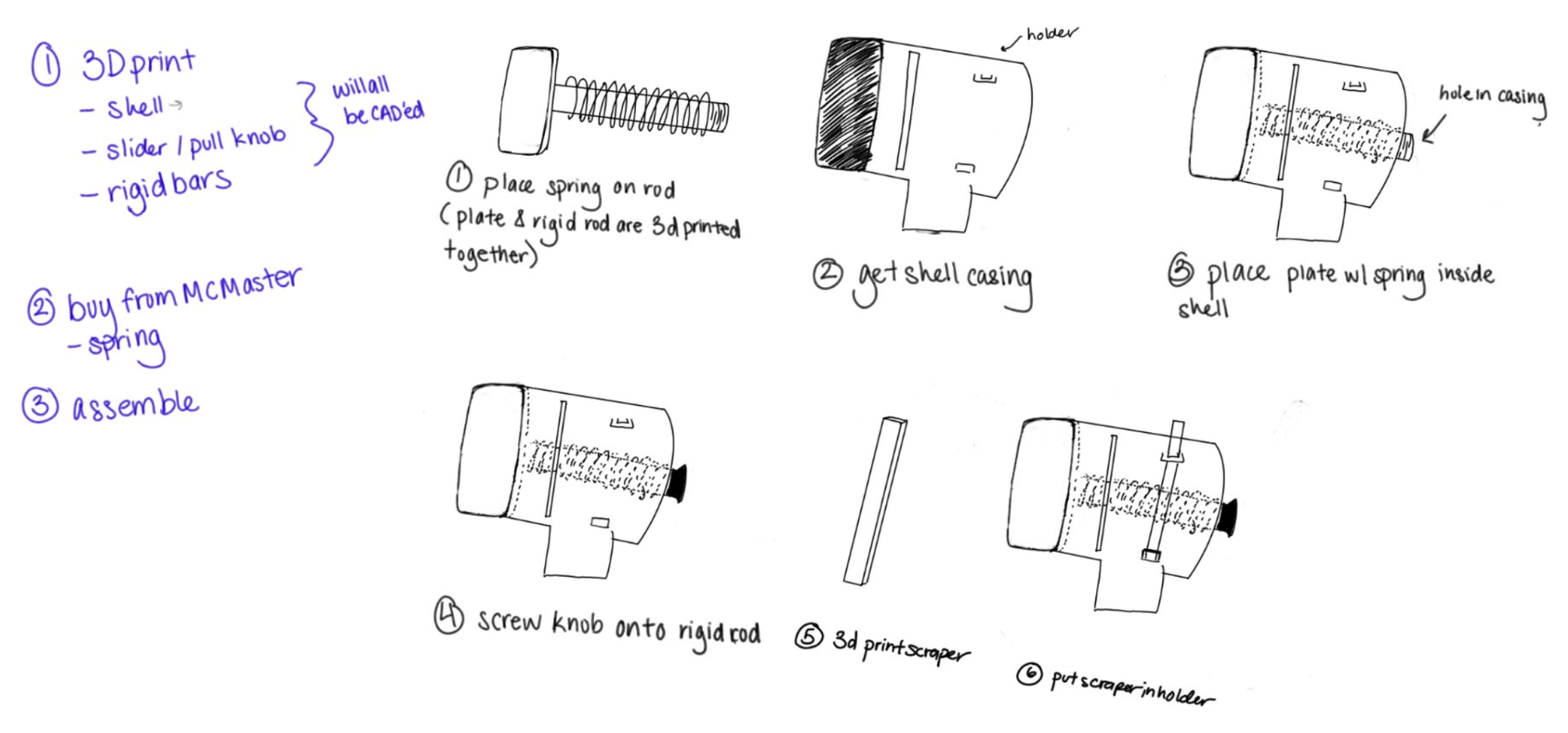

Assembly diagram for the Stomp n' Scrape

Prototype and Testing Details

The prototype used in the following tests is the final 3D print the Big Red Stompers manufactured given the time constraints of the course. The print was made in PETG with the scraper attachment on the left side of the housing.

Test 1 — Stomper Effectiveness. We used mustard seeds as a stand-in for SLF eggs — a conservative model since they are harder to crush than real SLF eggs. We measured the percentage of seeds crushed after one to five stomps, with a benchmark of 99%+ at five stomps. This test was important to show the concept could produce effective results. Result: The stomping component is optimized to destroy egg masses within a reasonable number of stomps. Further testing on durability under repeated use is still needed.

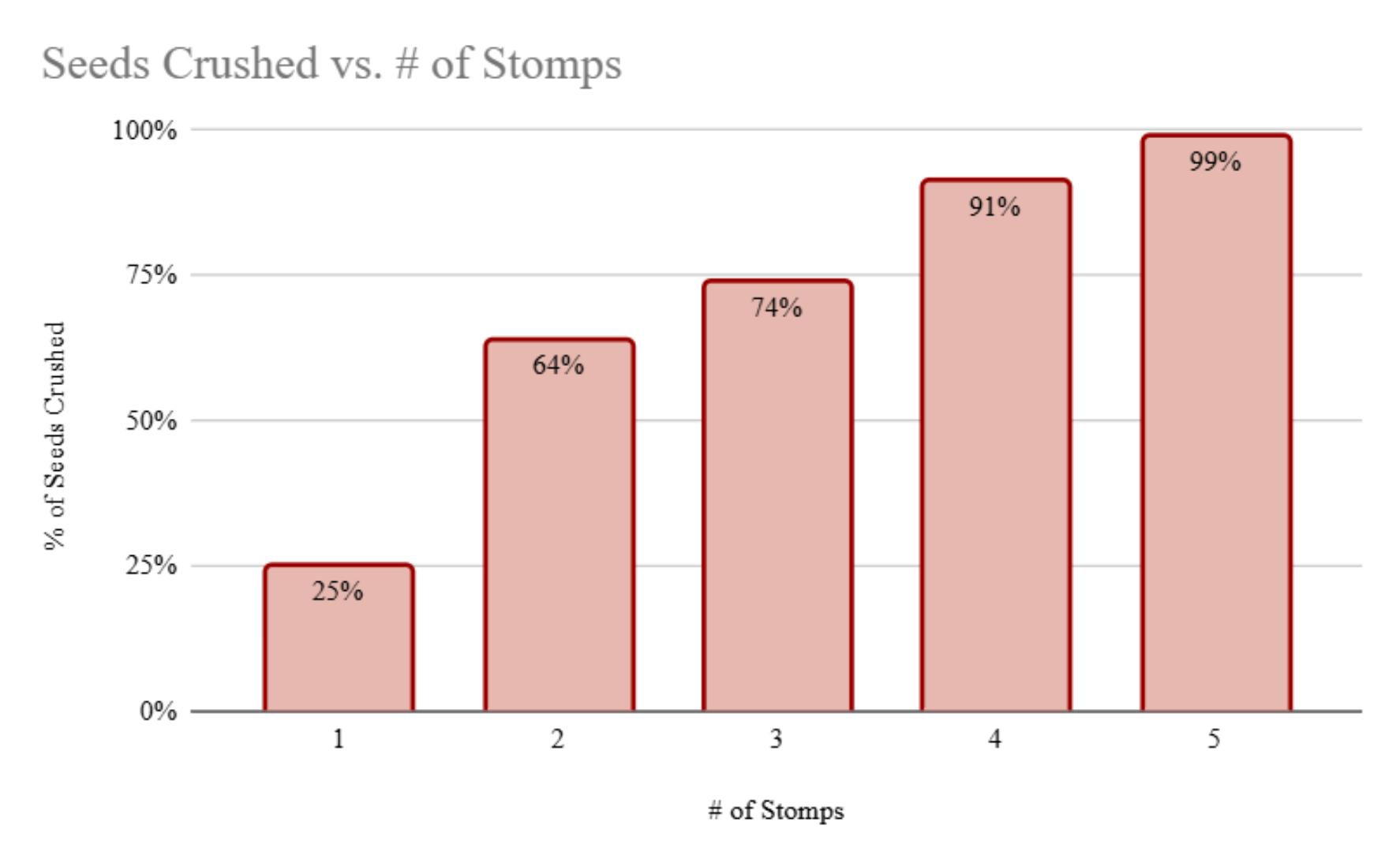

Seeds Crushed vs. Number of Stomps

Test 2 — Time of One Use. We timed one full stomp-and-scrape cycle: five sets of five stomps and one scrape at varying heights on a tree, using a chia/mustard seed mix to simulate egg masses, repeated three times. Ease of use is critical for a public consumer base. Result: All cycles satisfied the under-120-second target. Time-of-use can be further reduced by moving the scraper holder to the right-hand side of the casing for right-handed users, and adding a stopper at the end of the scraper so it auto-aligns with the device, reducing the positioning time before scraping.

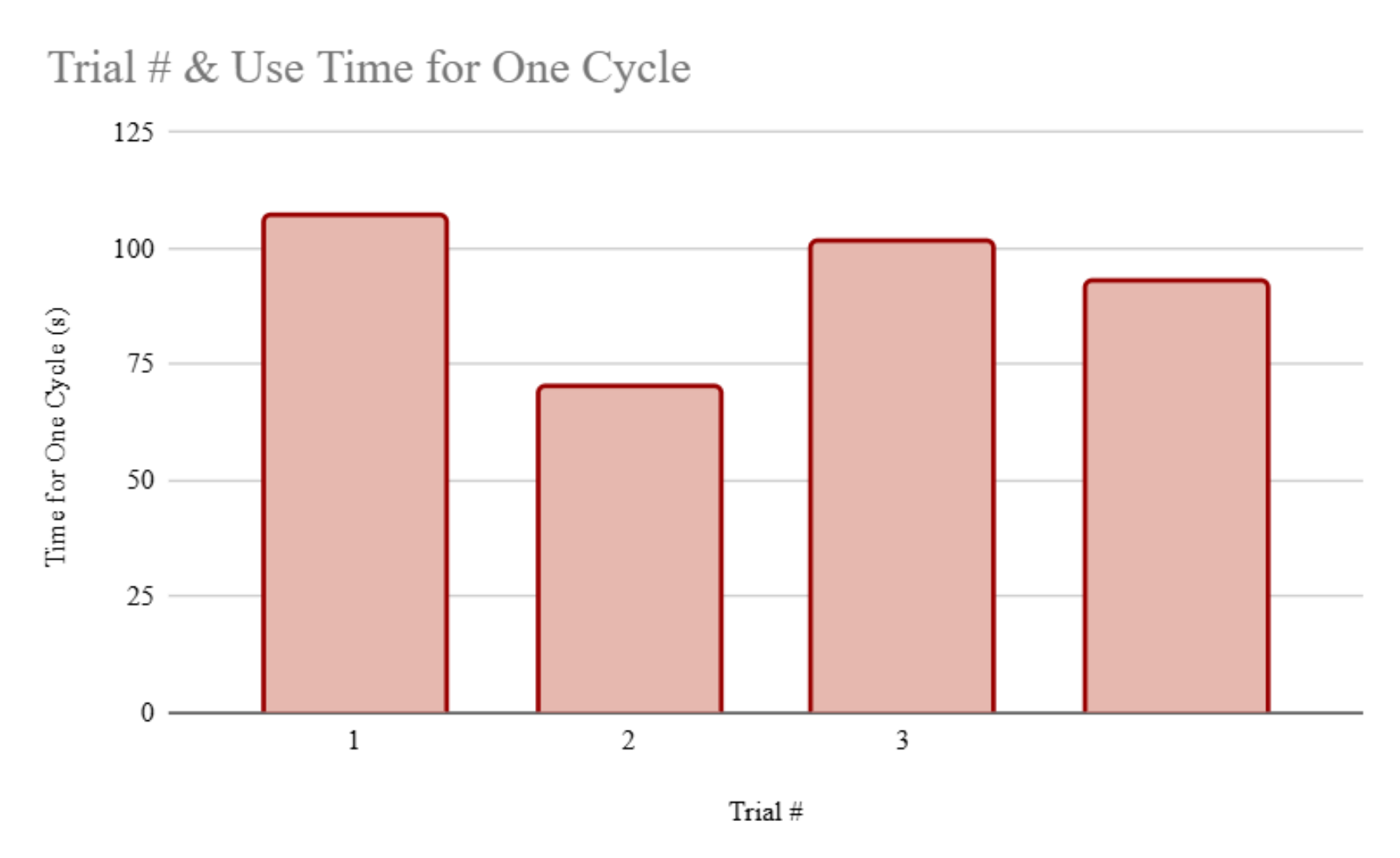

Trial Number and Use Time for One Cycle

Test 3 — Scraper Effectiveness. We covered the stomper with chia seeds at 100%, 75%, 50%, 25%, and 10% surface coverage, then recorded the percentage of surface area still covered after one scrape pass. This is relevant to how cleanly and reusably the device performs. Result: Most residue collected at the top edge and bottom corners of the stomper — outside the scraper’s current range of motion. Lengthening the slots on both sides of the housing would extend the scraper’s range and address these weak spots.

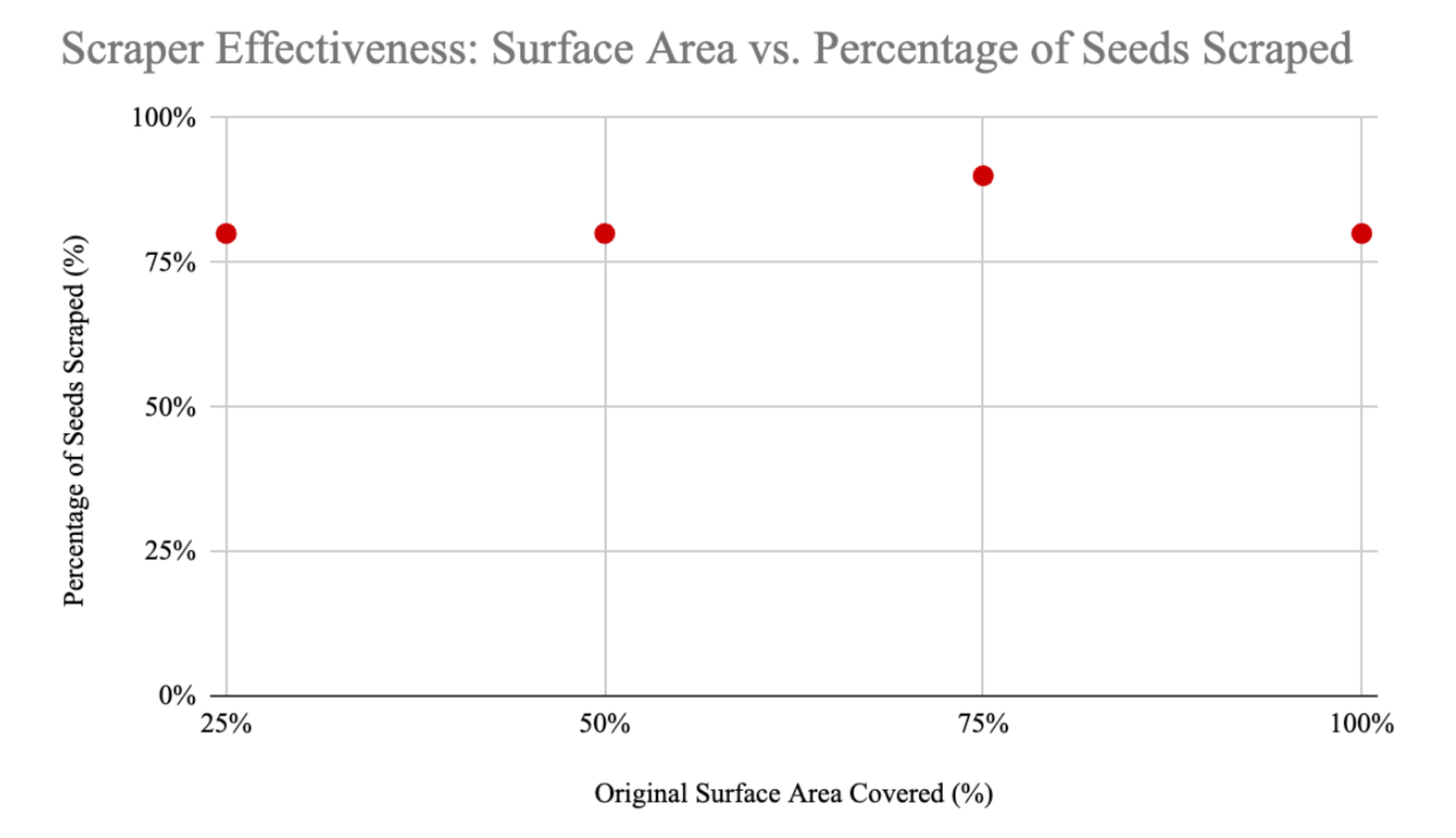

Scraper Effectiveness: Surface Area vs. Percentage of Seeds Scraped

Conclusion and Recommendation

The overall mechanism works, but testing surfaced several areas for improvement. First, the scraper should be redesigned with longer side tracks to extend its range of motion, since Test 3 showed weak spots on the edges of the face the scraper currently cannot access. Second, the knob should be redesigned with a hook shape to give users a more secure grip, which would shorten time-of-use. Finally, future iterations should test different print materials and add durability testing to ensure the product is reusable and reliable.

Because the final prototype is inexpensive to manufacture, the Stomp n’ Scrape has strong potential to scale for public use with minor design improvements. Since the target users are the general public rather than only grape farmers, marketing through TikTok, Instagram, and other social media platforms could help drive adoption. Outreach to environmental and agricultural entities with a vested interest in reducing SLF populations could further support distribution — those entities could sponsor and purchase the product for consumers who would use it if they could obtain it for free.

Bill of Materials

Item Cost Stage
Compression Spring #1 $6.05 Prototyping
3D Print #1 (PLA) $3.18 Prototyping
3D Print #2 (PETG) $3.14 Prototyping
Mustard Seeds $5.99 Testing
Chia Seeds $8.98 Testing
3D Print #3 (PETG) $3.14 Prototyping
Compression Spring #2 $4.60 Final Prototype
3D Print #4 (PETG) $3.14 Final Prototype
Total project cost $38.22
Final prototype cost $7.74

Final Component List

  • 3D-printed shell, plate, knob, and scraper
  • Compression spring (McMaster-Carr)

References

Technologies Used: LaTeX
